Stainless Steel Camlock Coupling Type E

Description:

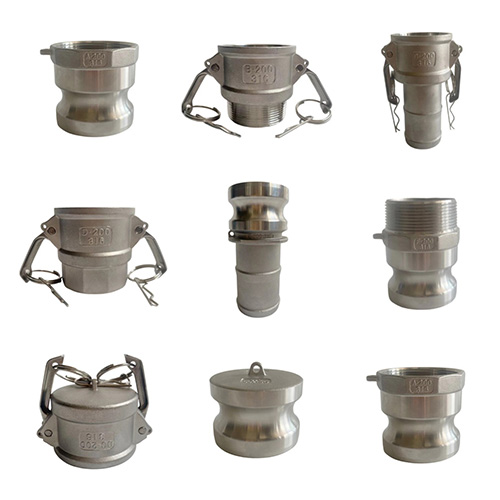

Camlock coupling, also called cam and groove coupling,is a type of coupling that is used for connecting hoses and pipes together in a variety of industries,it is produced by Aluminum,brass,stainless steel,polypropylene.They are easy to operate by hand and require no tools to connect, it always require one male adapter and one female coupler.They are the most widely used coupling in the world, due to its ease to installation and cost effectiveness.

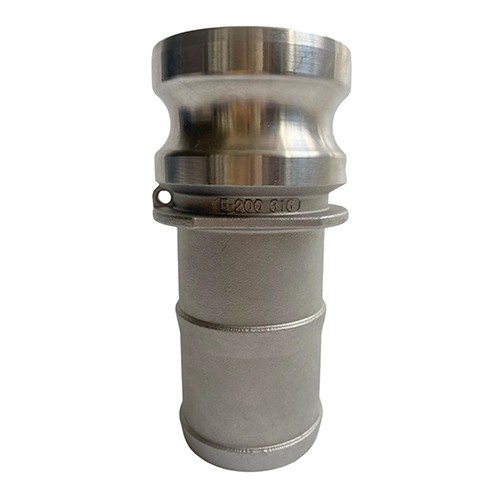

Type:Type E,Adapter (Male Camlock) X Hose Shank

Standard:Our camlock coupling are produced from 1/2" to 6" according to A-A-59326（(previously called MIL-C-27487)

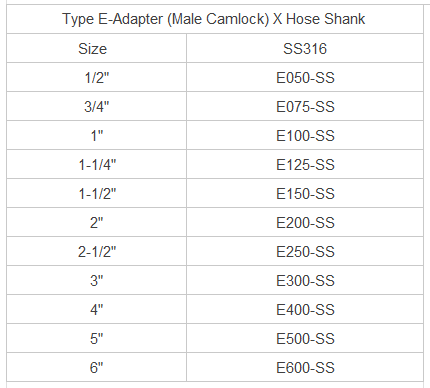

Size:1/2" 、  3/4"、  1“  、1-1/4”  、1-1/2“  、2”  、2-1/2“、  3”、  4”、  5”、  6”

Material:Coupling body is SS316/SS304,Handles are stainless steel,Pins, Rings and Safety clips are stainless steel

Gasket:NBR（ EPDM, Viton are available on request.）

Thread:NPT, BSP (BSPP,BSPT)

Working pressure:1/2”  150psi、  3/4”-2”  250psi、 2-1/2"   225psi、3" 200psi、  4"-6”  100 psi

Manufacture method:Precision casting or forged

Application:Camlock Coupling is widely used in chemical,water,hydraulic oil, petroleum products. oil and gas, mining,  agriculture，construction
