  • US Type Hose End

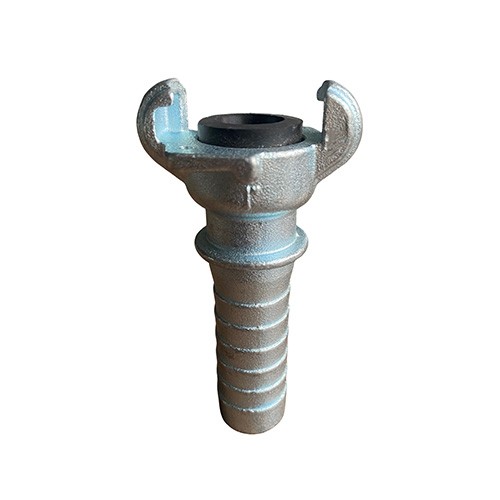

US Type Hose End

  • Category: Universal Coupling
  • Type: US type /Hose end
  • Material: Carbon steel, malleable iron
  • Sizes:1/4″-2″
  • Customizable contents: logo,packing
  • INQUIRY   EMAIL


Description:

Universal Air Hose coupling,also called Chicago Couplings,is used in pneumatic applications to connect air hoses to compressed air supply machines, air lines, or other air tools. it is produced by  malleable Iron, carbon steel,They are easy to operate ,firmly pressing one coupler to another and twisting seals the connection.Universal couplings are a convenient quick connect system to mate varying diameters of hose,.They are widely used  in air, water, and some chemicals industries.


Type:US type universal air hose coupling /Hose end

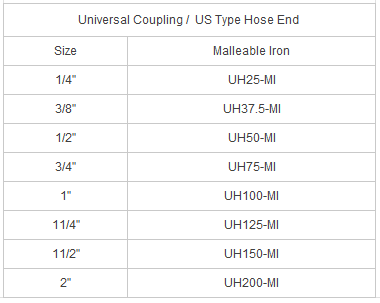

Size:1/4"  to 2",1/4” -1” are 2 claws , 1-1/4”-2” are 4 claws

Material: carbon steel, malleable iron

Gasket:NBR

Thread:NPT

Working pressure:10 bar

Manufacture method:Gravity casting

Application:Camlock Coupling is widely used in chemical,water,air,ndustrial hose, Mining machines.
